3D-printed plastics match mechanical properties of moulded parts

Parts 3D-printed in plastic could have the same mechanical properties as moulded parts with the application of localised heating, claim researchers in the US.

moulded parts

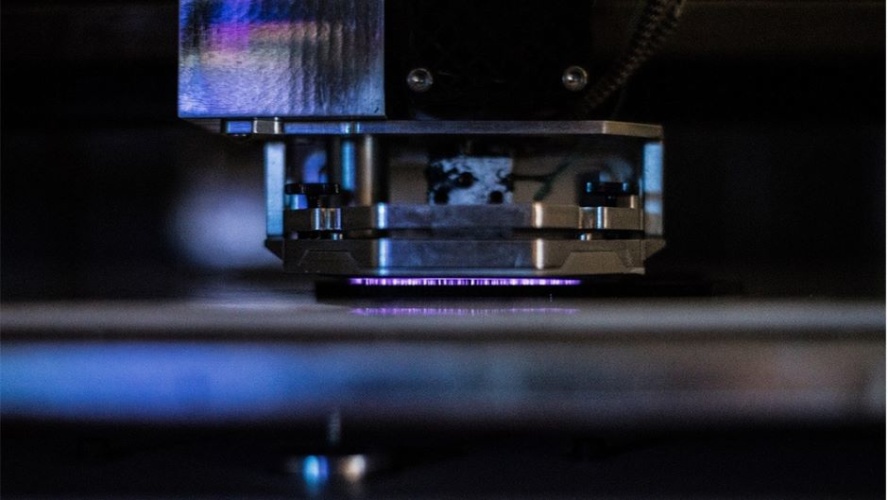

Texas A&M and Essentium researchers have developed the technology to weld adjacent 3D printed layers more effectively, increasing the reliability of the final product (Image: Essentium)

By integrating plasma science and carbon nanotube technology into standard 3D printing, researchers at Texas A&M University, in collaboration with scientists at Essentium, Inc, welded adjacent printed layers more effectively, increasing the overall reliability of the final part.

MORE MANUFACTURING CONTENT FROM THE ENGINEER

“Finding a way to remedy the inadequate bonding between printed layers has been an ongoing quest in the 3D printing field,” said Micah Green, associate professor in the Artie McFerrin Department of Chemical Engineering. “We have now developed a sophisticated technology that can bolster welding between these layers all while printing the 3D part.”

Their findings have been published in Nano Letters.

Plastics are commonly used for extrusion 3D printing (fused deposition modelling), a technique in which molten plastic is squeezed out of a nozzle that prints parts layer by layer. As the printed layers cool, they fuse to one another to create the final 3D part.

Studies have shown that these layers join imperfectly; printed parts are weaker than identical parts made by injection moulding where melted plastics assume the shape of a preset mould upon cooling. To join these interfaces more thoroughly, additional heating is required, but heating printed parts is problematic.

“If you put something in an oven, it’s going to heat everything, so a 3D-printed part can warp and melt, losing its shape,” Green said in a statement. “What we really needed was some way to heat only the interfaces between printed layers and not the whole part.”

The team looked at carbon nanotubes to promote inter-layer bonding. Since these carbon particles heat in response to electrical currents, the researchers coated the surface of each printed layer with these nanomaterials. The team found that these carbon nanotube coatings can be heated using electric currents, allowing the printed layers to bond together.

To apply electricity as the object is being printed, the currents must overcome a tiny space of air between the printhead and the 3D part. One option to bridge this air gap is to use metal electrodes that directly touch the printed part, but Green said this contact can damage to the part.

The team collaborated with David Staack, associate professor in the J. Mike Walker ’66 Department of Mechanical Engineering, to generate a plasma beam that could carry an electrical charge to the surface of the printed part. This technique allowed electric currents to pass through the printed part, heating the nanotubes and welding the layers together.

With the plasma technology and the carbon nanotube-coated thermoplastic material in place, Texas A&M and Essentium researchers added both these components to conventional 3D printers. When the researchers tested the strength of 3D printed parts using their new technology, they found that their strength was comparable to injection-moulded parts.

“The holy grail of 3D printing has been to get the strength of the 3D-printed part to match that of a moulded part,” Green said. “With our technology, users can now print a custom part, like an individually tailored prosthetic, and this heat-treated part will be much stronger than before.”
