Bubbler breathalyser tests for SARS-CoV-2

Researchers in the US have developed the Bubbler, a breathalyser test for SARS-CoV-2 that uses viral RNA detection to assist with making a diagnosis.

Bubbler kits were processed in a negative pressure bench top box to prevent contamination of amplicon particles in the laboratory (Image: William G. Fairbrother)

The Bubbler, described a new study published in The Journal of Molecular Diagnostics, reverse transcribes RNA from airborne virus particles into DNA to be tested via PCR. According to the report, it also barcodes that DNA, allowing samples to be linked directly to patients and be used for sequencing. It can be used for simultaneous batches of pooled samples and provides additional information such as viral load and strain identity and eliminates the need for stabilising a sample, potentially allowing the test to be performed at home.


“Involvement of the lower respiratory tract is often a precursor to severe COVID-19, so there is an argument for a more direct sampling focused on exhaled breath,” said lead investigator William G. Fairbrother, PhD, professor in the department of molecular biology, cell biology and biochemistry at Brown University in Providence, RI, USA.

Virus detection by the Bubbler is similar to a hospital-swab PCR test but is claimed to be a better measure of risk of contagion as it detects airborne viral particles. Swab tests can return a positive result months after infection as they detect viral RNA fragments in cells that persist in previously infected cells. The Bubbler can also be adapted for environmental sampling in hospitals, transportation hubs, and closed environments, the researchers said in their paper.

Seventy patients treated in the Emergency Department of Rhode Island Hospital between May 2020 and January 2021 were screened. The study tested samples from three points in the respiratory tract. Tongue scrapes from the mouth (saliva/tongue scrapes) and from 15 seconds of exhaled breath collected in the Bubbler were compared to those from a conventional nasopharyngeal swab PCR test. The Bubbler is a glass tube with a glass pipette through which patients can exhale. The tube is filled with a reverse transcription reaction mixture and cold mineral oil.

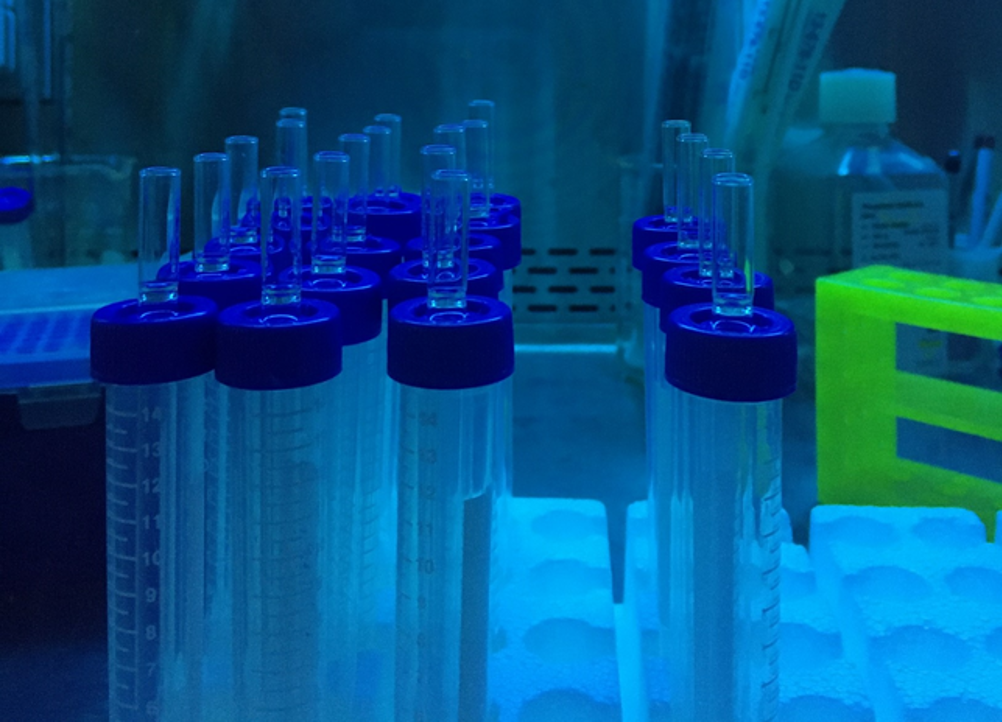

Breathalysers were bathed in UV light to maintain sterile field prior to construction of kits prepared for the clinical trial at Rhode Island Hospital (Image: William G. Fairbrother)

The study determined that SARS-CoV-2 can be detected in the breath and is more predictive of lower respiratory tract involvement. Viral RNA is said to be more enriched in the breath relative to oral samples, while oral samples include cells involved with SARS-CoV-2 replication that breath samples do not. This suggests the viral signal detected in the Bubbler, so called because of bubbling sound made when exhaling into the device, comes from active viral particles.

“The Bubbler is more likely to be a better indicator of current infection than nasopharyngeal swabs,” Dr. Fairbrother said in a statement. “Another advantage is the barcoding, which enables high-throughput RNA virus testing at a fraction of the cost of conventional testing. The barcode returns a viral sequence that also supports strain identification, which may prove useful as more information is learned about transmissibility and possible strain-specific treatment decisions.”

The team also demonstrated how the Bubbler might be adapted to detect virus in airborne samples. To model the movement of droplets exhaled in human breath, three unique nucleic acid samples were added to three personal humidifiers at different locations at different distances from the Bubbler in a room with high airflow and a room with low airflow. Although a detailed exploration of this application was beyond the scope of the study, the results demonstrate the potential to use aerosolised nucleic acids to quantitatively map airflow in indoor spaces, and to detect SARS-CoV-2 in the air.
