Excess heat from steel plants could be used to heat Sheffield

Engineers believe that excess heat from steel plants could be used to heat Sheffield, significantly reducing the city’s CO2 emissions.

According to a statement, steel could help provide a green alternative for heating Sheffield’s homes and businesses, alongside other renewable energy sources.

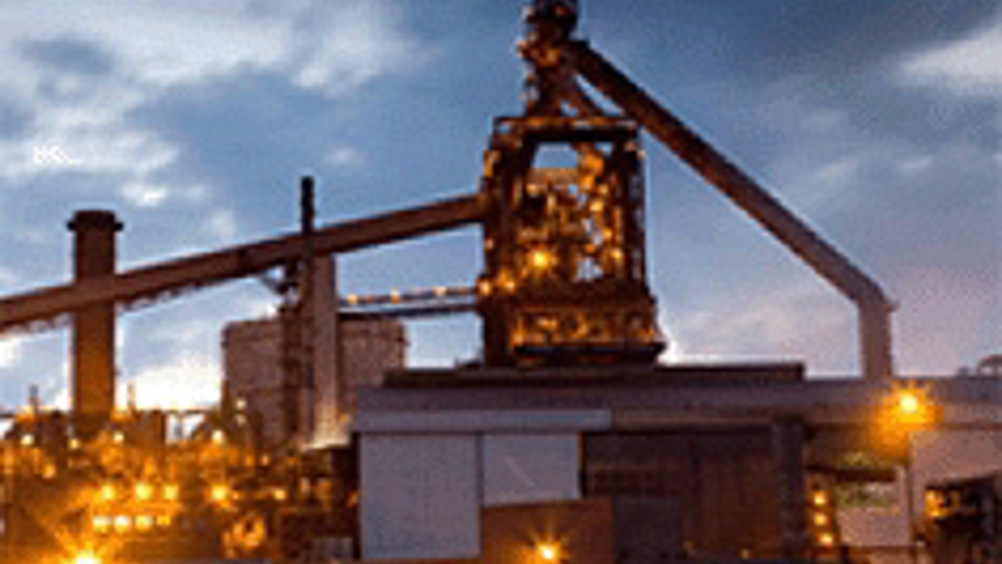

Experts from Sheffield University’s engineering faculty believe that the many steel plants located just outside the city centre could be connected to Sheffield’s existing district heating network to provide an extra 20MW of thermal energy.

‘It actually costs the steel plants to reduce the temperature of the flue gas and to cool the water used during steel manufacture,’ said Prof Jim Swithenbank, who played a key role in developing the first phase of Sheffield’s district heating system in the late 1970s.

‘Recovering this heat and transferring it to the district heating network reduces the cost of heat production, improves energy efficiency and is beneficial to the environment, making a win-win situation for the steelworks and the city.’

Sheffield already has the largest district heating system in the UK, powered through an energy recovery facility that burns the city’s non-recyclable waste. Each year this generates 21MW of electricity, enough to power 22,000 homes, and 60MW of thermal energy in the form of super-heated steam, which is pumped around the city in a 44km network of underground pipes. This provides space heating and hot water to more than 140 public buildings and 3,000 homes across the city, reducing the city’s CO2 emissions by 21,000 tonnes a year.

Engineers from the Sheffield University Waste Incineration Centre (SUWIC) mapped out a possible expansion of the network that could reduce Sheffield’s annual CO2 emissions by a further 80,000 tonnes.

In the EPSRC-funded study, the researchers used digital mapping software (GIS) to identify areas of high energy demand against potential new energy sources, such as the steel works and a new biomass plant currently under construction on the site of a former coal-fired power station.

This enabled them to assess where expansion of the network would be most advantageous. Their findings are published in the Journal of Energy Conversion and Management.

District heating, particularly using waste as a fuel, can provide cost-effective and low-carbon energy to local populations, without exposure to the fluctuations of energy markets.

Such systems are currently rare in the UK although widely used throughout the rest of the world. Many involve partnerships with local industry, where waste heat from process industries supplies the local district heating network; one such system in Finland uses waste heat from a steel producer.

While some UK cities are now using their waste incineration plants to generate electricity, few connect such facilities to a district heating system.

‘The analysis we’ve carried out in Sheffield could be mirrored across other UK cities,’ said Prof Vida Sharifi, who led the research. ‘Heating buildings is responsible for half the energy use in the UK. The government has estimated that if district heating were used across the UK in areas with high heat demand, it could supply around 5.5 million properties and contribute a fifth of the UK’s heating needs.

‘District heating is a good way to decarbonise the energy supply to meet national and international legislation on emission limits. And, importantly for local people, this form of energy can also be used to provide low-cost heating, especially to those in areas of fuel poverty.’
