Floating metal composite holds promise for marine applications

2 min read

A team of US researchers have developed a new metal matrix composite so light that it can float on water.

According to the group,  the material - which could potentially be used used to make unsinkable boats - also has potential automotive applciations, where lightweight and heat resistance could be used to help improve fuel economy.

Although syntactic foams have been around for many years, this is the first development of a lightweight metal matrix syntactic foam. It is the work of a team of researchers from US company Deep Springs Technology (DST) and the New York University (NYU) Polytechnic School of Engineering.

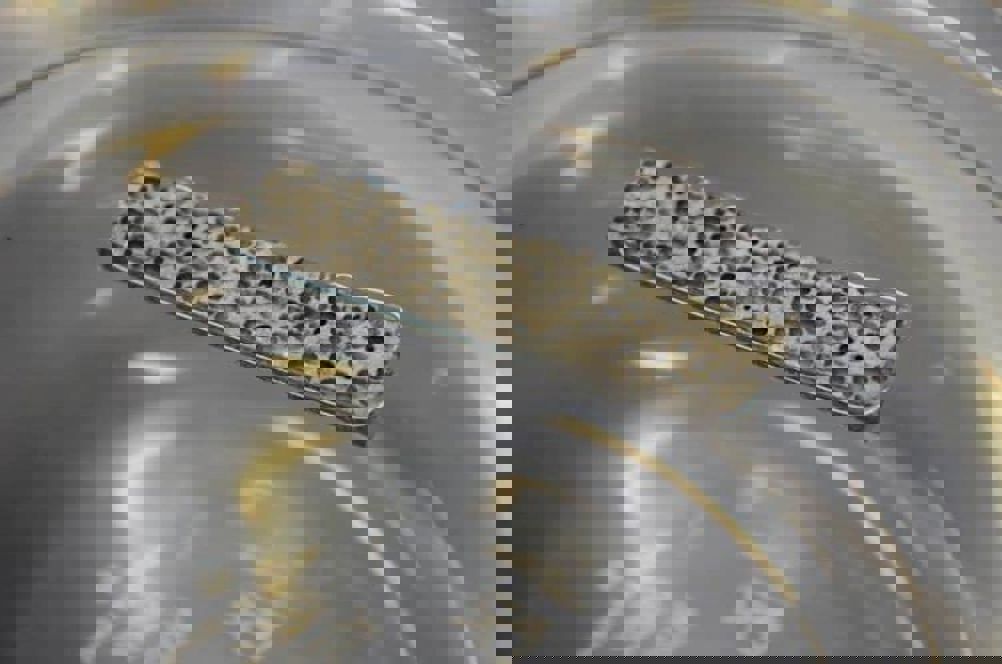

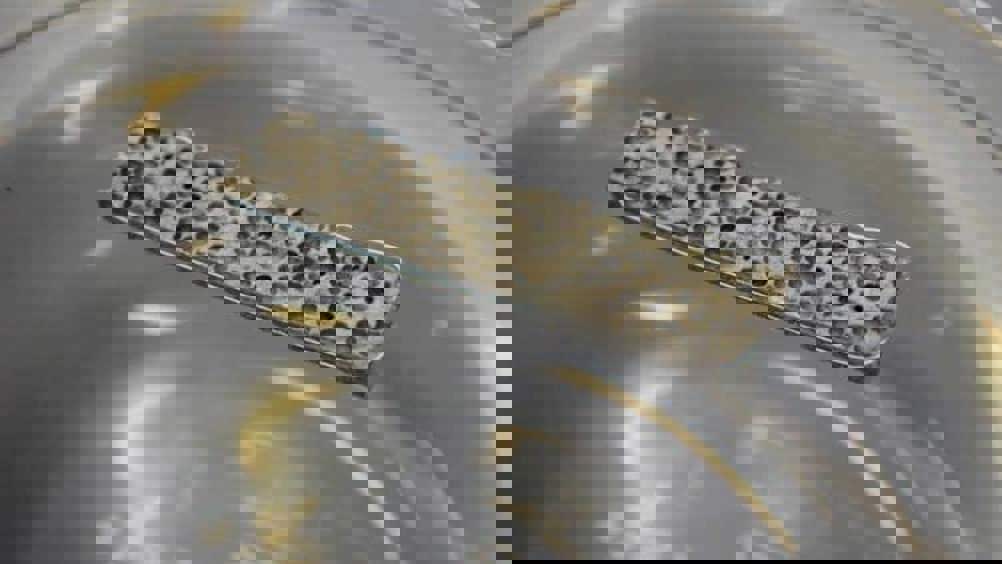

Their magnesium alloy matrix composite is reinforced with silicon carbide hollow particles and has a density of only 0.92g/cm3, compared with 1.0g/cc of water. Not only does it have a density lower than that of water, it is strong enough to withstand the rigorous conditions faced in the marine environment.

Significant efforts in recent years have focused on developing lightweight polymer matrix composites to replace heavier metal-based components in automobiles and marine vessels.

The technology for the new composite is very close to maturation and could be put into prototypes for testing within three years.

Amphibious vehicles such as the Ultra Heavy-lift Amphibious Connector being developed by the US Marine Corps could especially benefit from the light weight and high buoyancy offered by the new syntactic foams, the researchers said in a statement.

“This new development of very light metal matrix composites can swing the pendulum back in favour of metallic materials,” said Nikhil Gupta, an NYU Polytechnic School of Engineering professor in the Department of Mechanical and Aerospace Engineering and the study’s co-author.

“The ability of metals to withstand higher temperatures can be a huge advantage for these composites in engine and exhaust components, quite apart from structural parts,” he said.

The syntactic foam made by DST and NYU captures the lightness of foams, but adds substantial strength. The secret of this syntactic foam starts with a matrix made of a magnesium alloy, which is then turned into foam by adding strong, lightweight silicon carbide hollow spheres developed and manufactured by DST.

The shell of a single sphere can withstand pressure of more than 25,000psi before it ruptures – 100 times the maximum pressure in a fire hose.

The hollow particles also offer impact protection to the syntactic foam because each shell acts like an energy absorber during its fracture.

The composite can be customised for density and other properties by adding more or fewer shells into the metal matrix to fit the requirements of the application.

This concept can also be used with other magnesium alloys that are non-flammable.

The new composite has potential applications in boat flooring, automobile parts and buoyancy modules, as well as vehicle armour.

The authors recently published their findings, Dynamic Properties of Silicon Carbide Hollow Particle Filled Magnesium Alloy (AZ91D) Matrix Syntactic Foams, in the International Journal of Impact Engineering.

This research is conducted in collaboration with the US Army Research Laboratory.
