New Compact 5 Megapixel Firewire Cameras From STEMMER IMAGING

1 min read

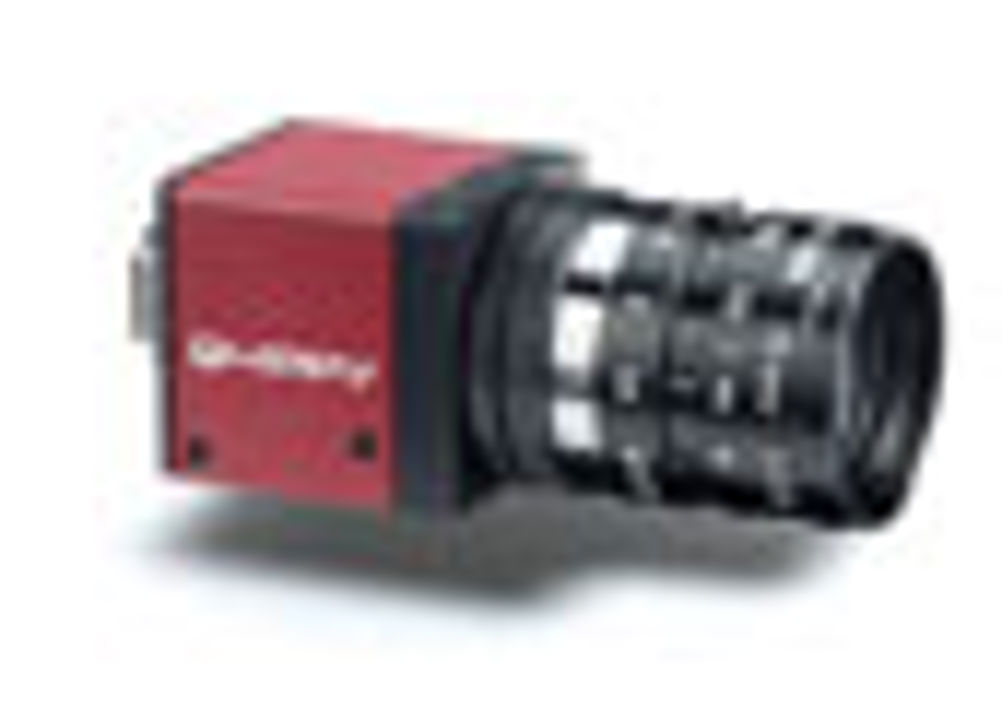

The F503 is the latest addition to the AVT GUPPY range of ultra compact, space-saving IEEE 1394 (Firewire) cameras for industrial and scientific OEMs, system Integrators and resellers. The new cameras are now available from STEMMER IMAGING in both colour and black & white versions with a highly-sensitive 2592 x 1944 (5 Megapixel) Micron/Aptina QWXGA 1/2.5" rolling shutter CMOS sensor.

The camera offers an external asynchronous trigger shutter and operates in 8-bit mode. At full image resolution, the AVT GUPPY F-503B/C offers up to 6.5 fps and is thus particularly suited for use in industrial image processing and product automation. Other features include 2x and 4x binning as well as image sub-sampling. The option to record image sequences automatically (multi-shot) or to define areas of interest (AOI) is also provided. The extensive built-in image pre-processing capabilities provide outstanding image quality, reduced image manipulation, less load on the system and higher performance overall.

Offering a highly cost-effective entry into high resolution digital image processing, these new models offer a highly practical  alternative for applications where interlaced analogue cameras and framegrabbers have traditionally been used. Integrated Smart Functions take over essential functions of the frame-grabber. The F503b/c can be easily integrated into existing applications thanks to its powerful and flexible API.
