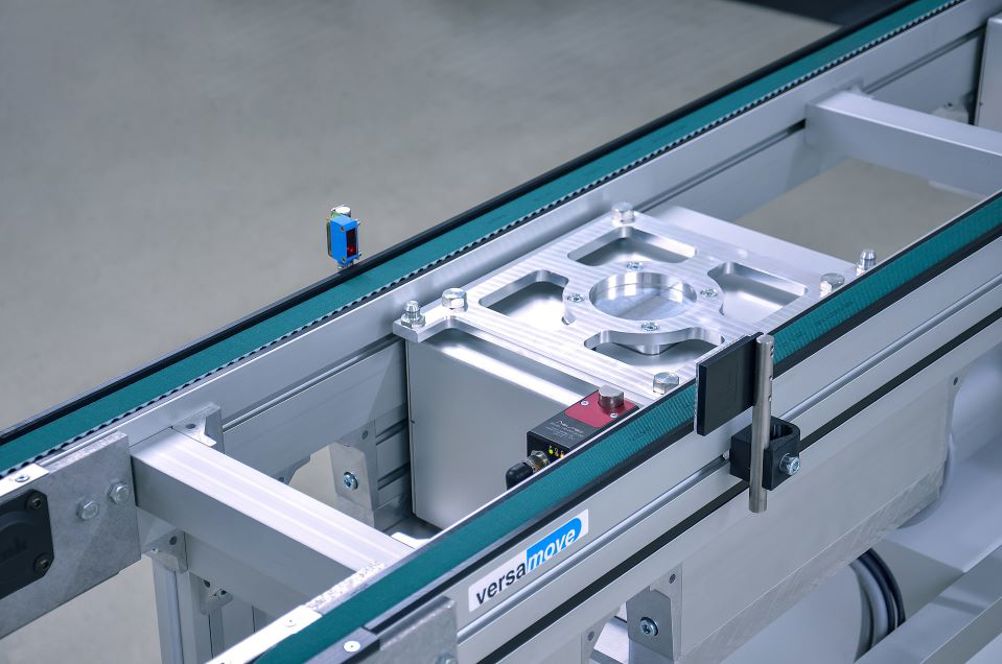

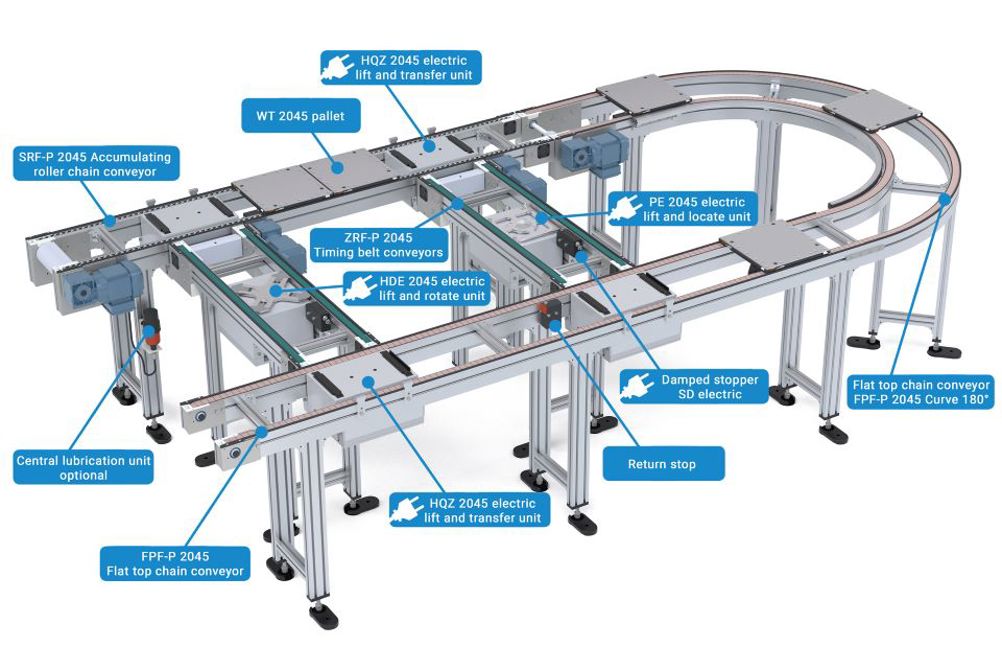

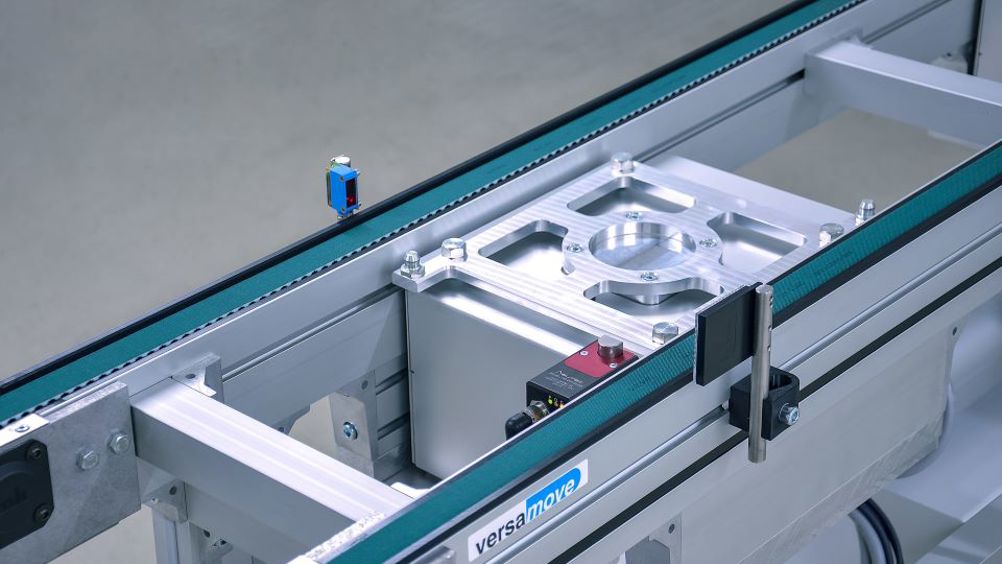

mk has expanded its workpiece carrier system, Versamove, with fully electric functional units. For efficient and environmentally friendly process automation, the lift-and-transfer conveyor HQZ, the lift-and-rotate unit HDE, the lift-and-locate unit PE, and the stopper SU/SD are now also available in fully electric variants. This completely eliminates the need for a compressed air supply and can be retrofitted into existing Versamove standard systems with ease.
Versamove standard is the most compact of the Versamove systems. It offers fully electric functional units and affordable curve modules. Due to the specially developed 45 mm aluminium profile for the basic structure of the entire system, it is also compatible with other systems and workpiece carriers available on the market.

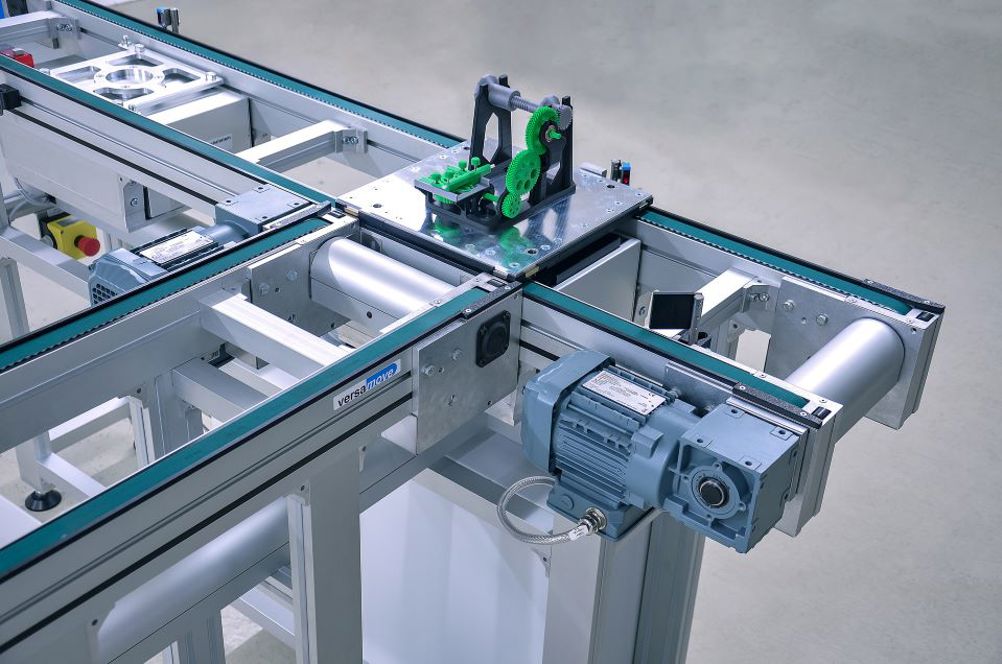

Versamove standard transports workpiece carriers from 240 x 240 to 400 x 400 mm, with custom dimensions or dimensions in 80 mm intervals possible. The system can move pallets weighing up to 40 kg. The special feature of this system is its affordable curve modules, which are equipped with a flat top chain or, for compact curves in tight spaces with a round belt.
As the sole distributor of mk products in the UK and Ireland, AdaptTech is the only place that this new product can be purchased. Visit their website now to find out more and to download a free brochure.
Email info@adapt-tech.co.uk
Call (01949) 823751
Visit www.adapt-tech.co.uk
