Resins from vegetable oil

2 min read

UK researchers have developed ways to make bio-resins from vegetable oils which could offer a sustainable alternative to petroleum- based thermoset resins.

Thermoset resins are some of the most commonly used materials in the construction, furniture and automotive industries. Around 350,000 tonnes a year are currently produced in the UK to make a wide variety of composite materials from particleboard to glass fibre panels. At present all the raw materials are derived from petrochemicals, and the toxicity and volatility of starting materials such as formaldehyde require careful environmental, health and safety monitoring.

But now, research supported by the Sustainable Technologies Initiative shows how the renewable polymers could offer a commercially viable alternative that would help manufacturers to meet tighter environmental regulations and reduce consumption of finite petrochemical resources.

In the REPLANT project, a research team from BC, the BioComposites Centre at the University of Wales, Bangor, who specialise in renewable plant technology, worked with industrial partners Cambridge Biopolymers, a contract manufacturer and a resin end-user.

A key goal of the project was to develop a thermosetting resin system derived from vegetable oils such as rapeseed oil, which is widely grown in the UK. As well as being based on renewable resources and offering new markets for UK producers, the new generation of bio-resins have other important attractions.

Their use would avoid health and safety issues arising from the present reliance on phenol and formaldehyde in making conventional thermoset resins. Emissions of these volatile chemicals are regulated in the workplace and there are concerns over the slow release of formaldehyde from products such as particle board at the point of use. An added bonus of a switch to bio-resins would be a cut in carbon emissions as the growing crops absorb greenhouse gases.

‘Our clean and green chemical processing technologies make it possible to produce bioresins from renewable resources,’ said project manager Dr Paul Fowler. ‘We’ve succeeded in developing a low effluent manufacturing procedure that’s based on the use of vegetable oil, water, air and electricity and yields formaldehyde-free products with excellent performance characteristics.’

A key step was the development of a technique known as ozonisation to turn the vegetable oil into thermosetting resin. Patent applications have been made for the novel process technology, which is based on the use of ozone gas, and operates at ambient temperature. The clean, low effluent manufacturing process yields formaldehyde-free products with a high solids content of over 75%.

Development of the new process is expected to appeal to thermoset manufacturers by making it easier for them to meet health and safety regulations in the workplace as well as demand from customers for greener products that are formaldehyde free.

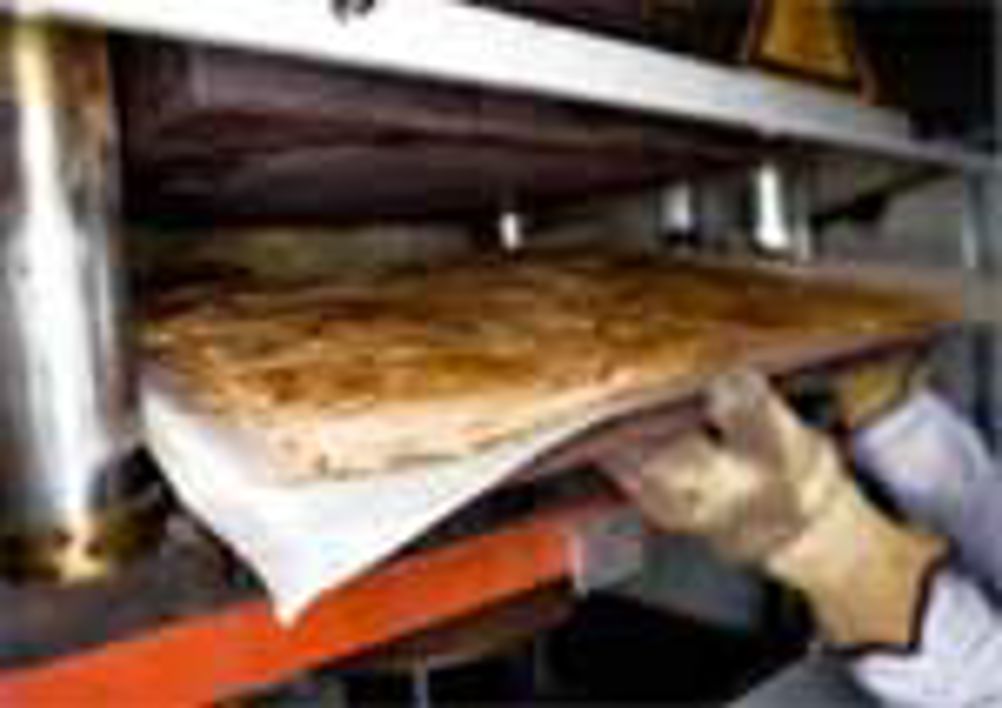

In demonstration trials on factory production lines, the bio-resins performed well. Performance matched that of petrochemical resins. The trials demonstrated that the process is capable of working on an industrial scale and commercialisation is expected to follow. The first applications are likely to be in selected insulation products, with future potential in industries ranging from electronics to automotive, construction materials, furniture, foundry and engineered wood products.

‘Our long-term aim is partial replacement with a bio-based alternative of the many hundreds of thousands of tonnes of petrochemical-derived thermoset resins that are currently used in the UK and rest of Europe every year,’ said Dr Fowler.

For rapeseed growers, the project could open up a valuable potential market outside the food and biodiesel industries. The outcome should provide a significant advance in the industrial usage of agricultural crops, with a market for tens of thousands of tonnes of oilseeds per year.
