Seeing through cone-shaped cornea

University of Rochester researchers have developed custom-designed contact lenses that improve vision for people with keratoconic eyes and offer hope of non-surgical treatment instead of corneal transplants.

The researchers describe the custom design techniques and results of visual acuity tests in a paper published in Optics Letters.

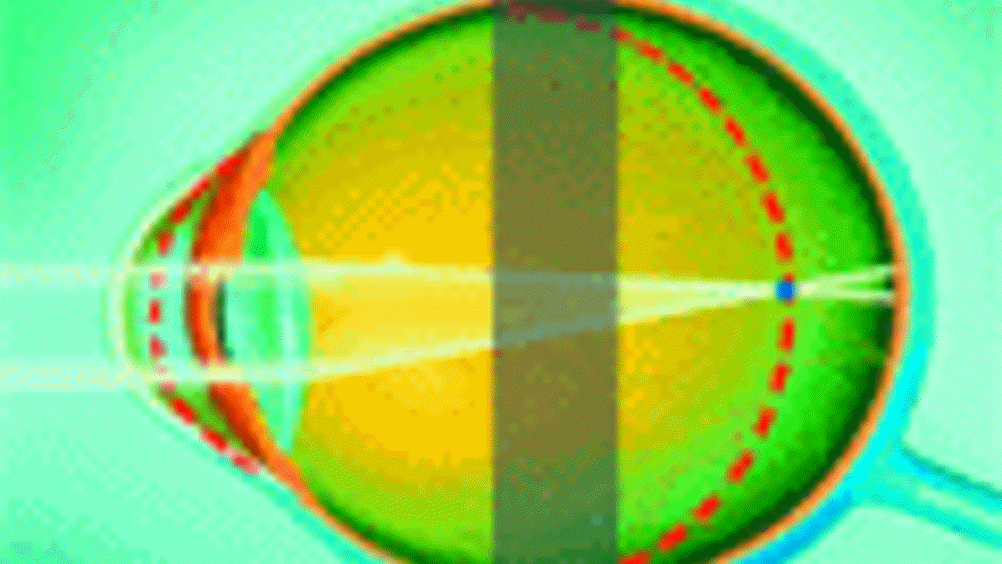

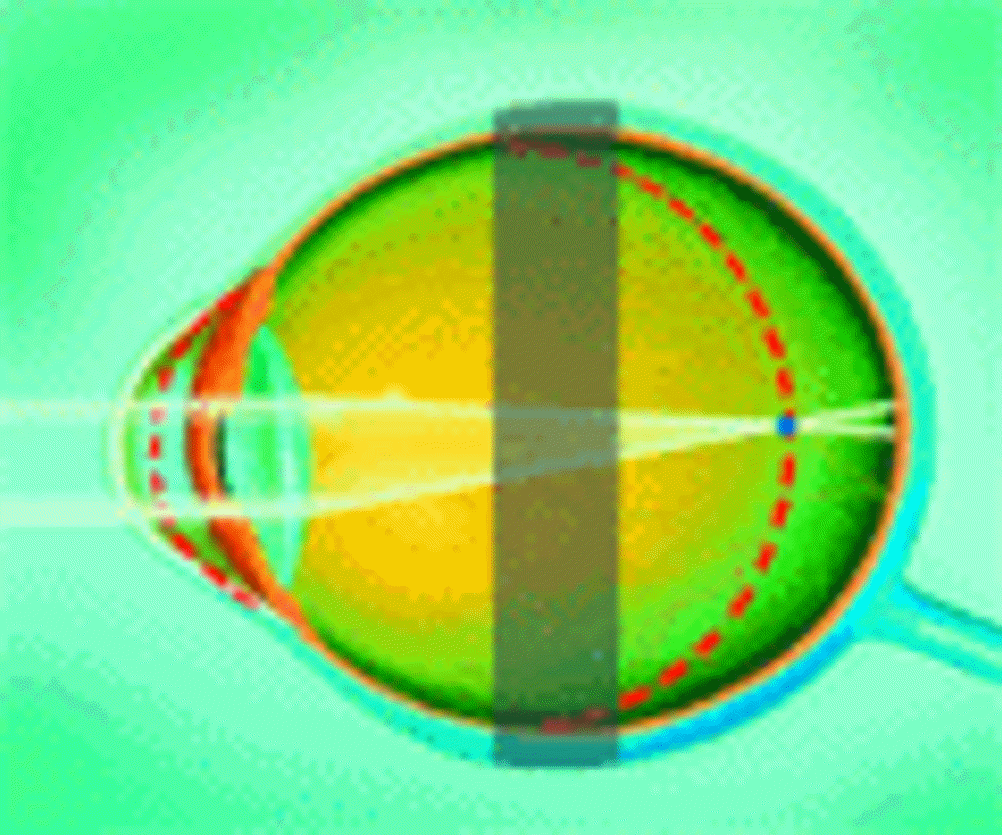

Keratoconic eyes are rare but disabling. From the side, the eyes look cone-shaped. The apex shift from visual axis in the cornea causes people with the condition to see halos and double and triple images. About 1 in 2,000 people suffer from the disease, usually in both eyes.

'The condition shows up in a relatively small population, but it causes huge optical problems,' said Geunyoung Yoon, assistant professor in the Departments of Ophthalmology and Biomedical Engineering, the Center for Visual Science, and the Institute of Optics. 'These people have problems so severe, they can't tolerate glasses. They can't take laser vision correction because they have a very thin cornea around the apex, so it's not an option. The only available treatment is to wear hard contact lenses or corneal transplant with a donored cornea if the disease is severe. And with the corneal transplant, there is a rejection rate.'

All three subjects reported their vision significantly improved with the custom-designed soft contact lenses.

The scientists tested several designs of custom lenses on the subjects' eyes for high-contrast and low-contrast visual acuity. They compared vision with the custom-designed soft lenses to vision with conventional lenses and rigid gas permeable lenses, or hard contact lenses.

Corrections with the custom lenses resulted in an average improvement of 2.1 lines in visual acuity, or from 20/48 to 20/29, over the use of the conventional defocus and astigmatism corrections alone.

Conventional soft contact lenses do not work for keratoconic eyes, as they conform to the conical cornea shape. The custom-designed lenses have irregular front surface profiles designed to correct for specific aberrations of the cornea and crystalline lens. The scientists designed the front profiles by measuring with wavefront sensors exactly how light enters the subjects' eyes through the misshapen cornea. In collaboration with Bausch & Lomb, an oscillating tool lathe sculpted the front surface of the lens.

Keeping the lenses exactly in place is still a challenge, as blinking shifts contact lenses. The scientists used existing stabilising techniques, such as making the lenses bottom-heavy, to coax them into correct orientation.
