Smarticle robots built from smaller swarming robots

Swarming 3D printed smarticles unlock new method of robot locomotion and may be able to form load-bearing structures

An accidental discovery about construction staples led to the development of the swarming robots. Nick Gravish, a doctoral student at Georgia Tech working on a project with the Army Research Laboratory, found that if these heavy duty staples were poured into a box with removable sides, they would self-assemble into tower structures that will stay standing even if the box was disassembled. This, he realised, meant that entangling simple structures could lead to the formation of a composite structure with mechanical properties well beyond those of the original structures.

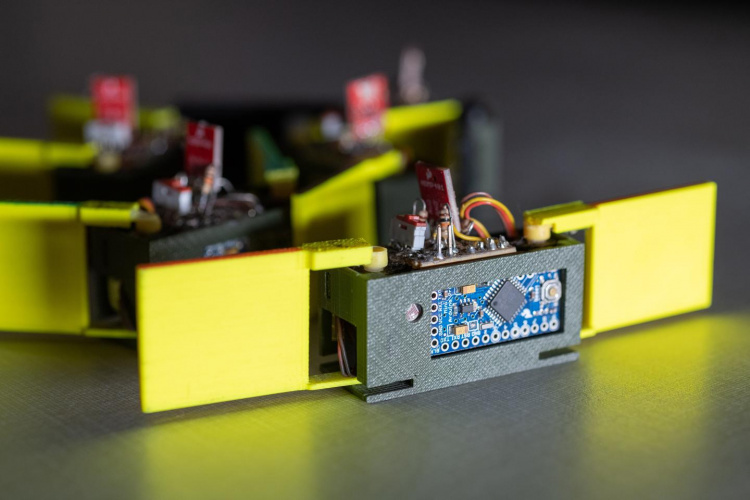

Closeup of a "smarticle" – smart active particle – showing the two 3D-printed arms, light sensor and motor. Image: Rob Felt, Georgia Tech

Developing this idea with Prof Dan Goldman, a Georgia Tech physicist, Gravish designed small robots, around 5 cm across, which could be built on a 3D printer and were capable only of one basic action: flapping their arms up and down. However, when five of these smart active particles – or smarticles – are confined in a circle, they begin to nudge each other and form a robophysical system known as a supersmarticle that can move by itself. As the researchers explain in Science Robotics, adding a light or sound sensor to the smarticles allows the supersmarticle to move in response to the stimulus.

The illuminated smarticle has been frozen by a light beam, while the rest of the supersmartucle components continue to flap, movint he whole swarm towards the stalled component. Image: Rob Felt, Georgia Tech

"These are very rudimentary robots whose behaviour is dominated by mechanics and the laws of physics," Goldman said. "We are not looking to put sophisticated control, sensing and computation on them all. As robots become smaller and smaller, we'll have to use mechanics and physics principles to control them because they won't have the level of computation and sensing we would need for conventional control."


Further reading


The behaviour of the supersmarticle was completely emergent, Goldman said. "Even though no individual robot could move on its own, the cloud composed of multiple robots could move as it pushed itself apart and shrink as it pulled itself together. If you put a ring around the cloud of little robots, they start kicking each other around and the larger ring -- what we call a supersmarticle -- moves around randomly."

The researchers also noticed that if one of the smarticles stopped moving – for example, if it's battery died – the other robots would move towards their stalled companion. This gave the clue to how they could control the movement of the robot swarm. A light sensor added to each smarticles halted its movement when activated, for example by a torch beam.

"If you angle the flashlight just right, you can highlight the robot you want to be inactive, and that causes the ring to lurch toward or away from it, even though no robots are programmed to move toward the light," Goldman said. "That allowed steering of the ensemble in a very rudimentary, stochastic way."

Goldman believes that tweaking the geometry of the individual smarticles would change the way the composite swarm could be reconfigured. This could give rise to more complex interactions, which his army sponsors hope could potentially be used to enhance situational awareness for troops in rugged and difficult to manoeuvre terrain such as forests, caves, or even cities. Sam Stanton, programme manager for complex dynamics and systems at the Army research office, said "For example, as envisioned by the Army Functional Concept for Maneuver, a robotic swarm may someday be capable of moving to a river and then autonomously forming a structure to span the gap.”
