US researchers develop technique for printing flexible metal circuits

1 min read

Researchers at North Carolina State University in the US have developed a technique for directly printing metal circuits that they claim could make it easier to manufacture flexible electronics.

flexible electronics

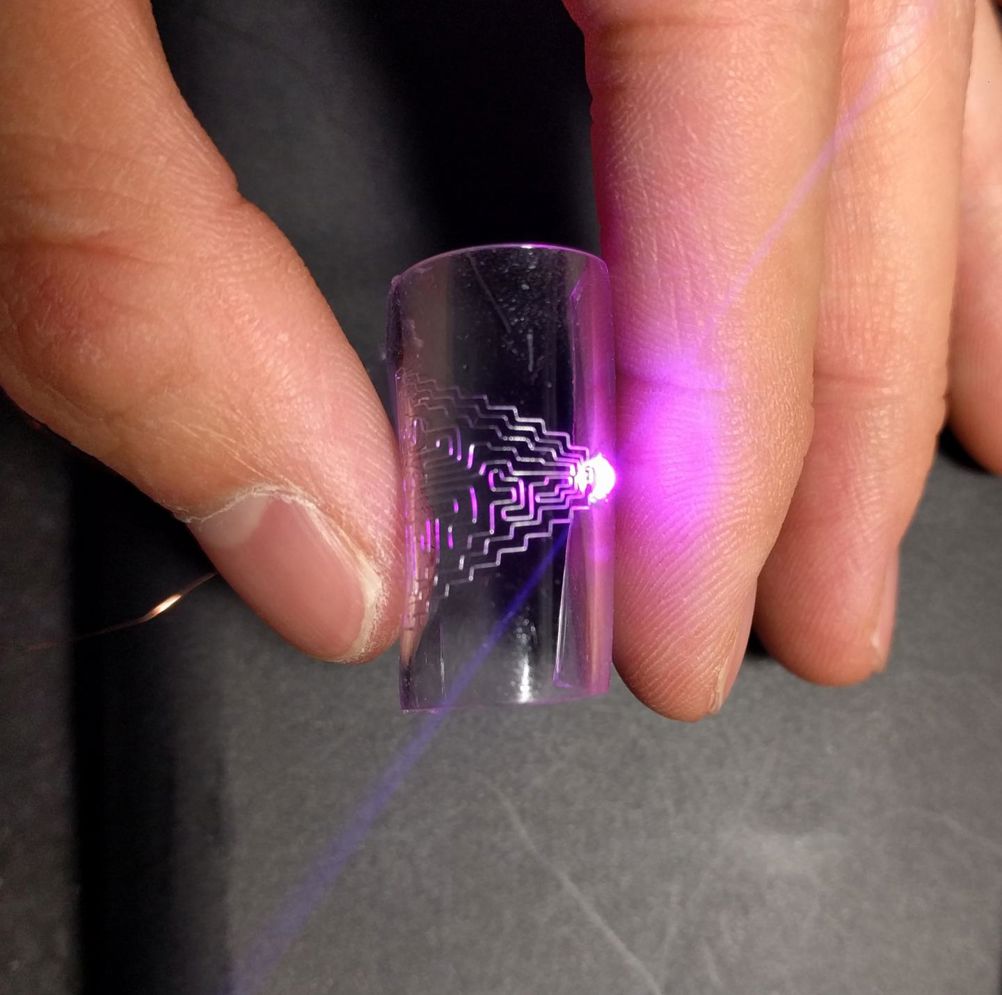

This technique can be used to print flexible, stretchable circuits

The technique can use multiple metals and substrates and is compatible with existing electrohydrodynamic printing technology, which is already used in many manufacturing processes that use functional inks. However, instead of ink, the process uses molten metal alloys with melting points as low as 60°C.

The team has demonstrated the technique using three different alloys, printing on four different substrates: one glass, one paper and two stretchable polymers.

"Flexible electronics hold promise for use in many fields, but there are significant manufacturing costs involved — which poses a challenge in making them practical for commercial use," said Jingyan Dong, co-author of a paper on the work published in the journal Advanced Materials Technologies.

"Our approach should reduce cost and offer an efficient means of producing circuits with high resolution, making them viable for integrating into commercial devices," he added.

The group tested the resilience of its circuits on a polymer substrate and found that the conductivity was unaffected even after being bent 1,000 times. The circuits were still electrically stable even when stretched to 70 percent of tensile strain.

They also found that the circuits are capable of "healing" themselves if they are broken by being bent or stretched too far. "Because of the low melting point, you can simply heat the affected area up to around 70°C and the metal flows back together, repairing the relevant damage," said Dong.
