Data sheet: T30 high-capacity load cell assembly from Thames Side Sensors

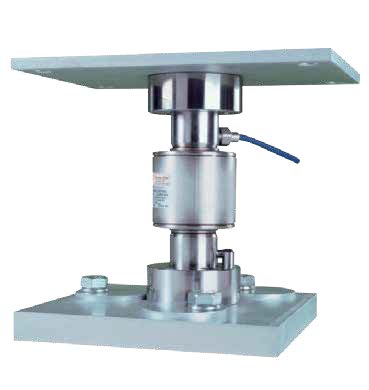

This stainless steelThames_Side_T34_Weighbridge_Data_Sheet_10 self-centering rocker column load cell is fully welded and hermetically sealed, with protection to IP68/IP69K. It is an ideal solution for weighbridges/truck scales thanks to its approvals to OIML C4 (4000 divisions) and NTEP Class III L, as well as lightning surge arrestors and a tough, durable polyurethane cable.

Corner correction at the junction box is minimised because the T34 is pre-corner adjustment optimised at +/- 0.05% by output current calibration (in mV/V/Ω). This saves a significant amount of time during commissioning.
