Elastic conductors could lead to stretchable electronic devices

Researchers from North Carolina (NC) State University have developed highly conductive and elastic conductors made from silver nanowires that can be used to develop stretchable electronic devices.

Stretchable circuitry could be formed into an electronic ‘skin’ that could help robots to pick up delicate objects without breaking them and stretchable displays and antennas that could make mobile phones and other electronic devices stretch and compress without affecting their performance.

However, the first step towards making such applications possible is to produce conductors that are elastic and able to effectively and reliably transmit electric signals regardless of whether they are deformed.

Dr Yong Zhu, an assistant professor of mechanical and aerospace engineering at NC State, and Feng Xu, a PhD student in Zhu’s lab, have developed such elastic conductors using silver nanowires.

According to the university, the new technique embeds highly conductive silver nanowires in a polymer that can withstand significant stretching without adversely affecting the material’s conductivity.

‘This development is very exciting because it could be immediately applied to a broad range of applications,’ Zhu said. ‘In addition, our work focuses on high and stable conductivity under a large degree of deformation, complementary to most other work using silver nanowires that is more concerned with flexibility and transparency.’

‘The fabrication approach is very simple,’ said Xu. Silver nanowires are placed on a silicon plate. A liquid polymer is poured over the silicon substrate. The polymer is then exposed to high heat, which turns the polymer from a liquid into an elastic solid. Because the polymer flows around the silver nanowires when it is in liquid form, the nanowires are trapped in the polymer when it becomes solid. The polymer can then be peeled off the silicon plate.

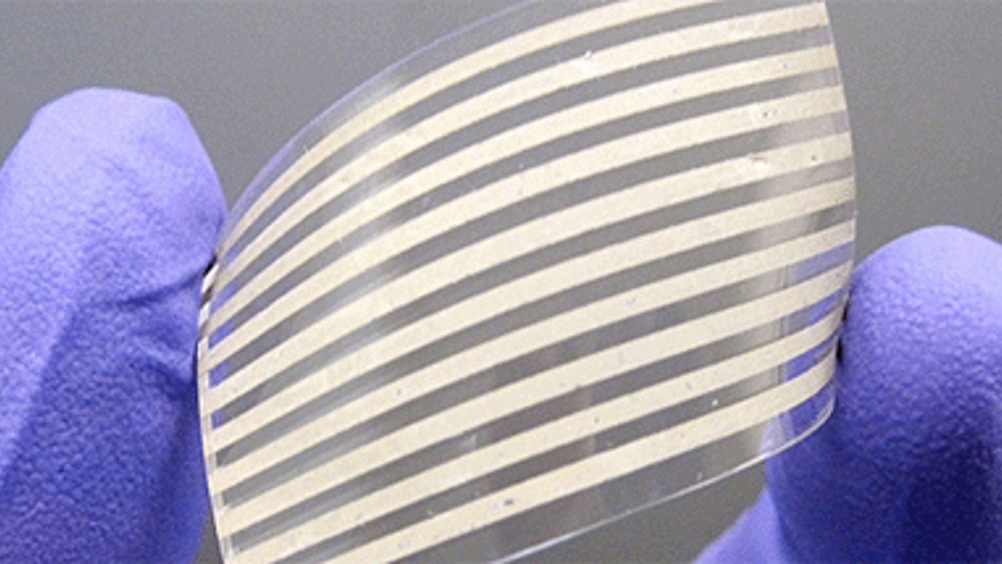

‘Also, silver nanowires can be printed to fabricate patterned stretchable conductors,’ Xu added. The fact that it is easy to make patterns using the silver nanowire conductors should facilitate the technique’s use in electronics manufacturing.

When the nanowire-embedded polymer is stretched and relaxed, the surface of the polymer containing nanowires buckles. The end result is that the composite is flat on the side that contains no nanowires, but wavy on the side that contains silver nanowires.

After the nanowire-embedded surface has buckled, the material can be stretched to up to 50 per cent of its elongation, or tensile strain, without affecting the conductivity of the silver nanowires. This is because the buckled shape of the material allows the nanowires to stay in a fixed position relative to each other, even as the polymer is being stretched.

‘In addition to having high conductivity and a large stable strain range, the new stretchable conductors show excellent robustness under repeated mechanical loading,’ Zhu said. Other reported stretchable conductive materials are typically deposited on top of substrates and could delaminate under repeated mechanical stretching or surface rubbing.

The paper, ‘Highly Conductive and Stretchable Silver Nanowire Conductors’, was published online on 12 July in Advanced Materials.
