Microfiltration For Medical Applications Ultrafine Filter Maker Sets New Standards

Precision Micro, the Birmingham based specialist precision component manufacturer, claims to be ‘raising the bar’ for photo chemical etching by setting new precision standards in the production of ultra-fine filter components for the medical market.
Precision Micro exclusively produces high precision bespoke components for OEMs; parts manufactured to customers’ own designs, to meet or exceed their individual performance requirements.

Precision Micro engineers took up the challenge from a medical device manufacturer to produce a microfilter by the photo etch process after several companies had tried and failed. The mesh had previously been manufactured by a laser process that was time consuming, prohibitively expensive and left burrs on the underside of the component.

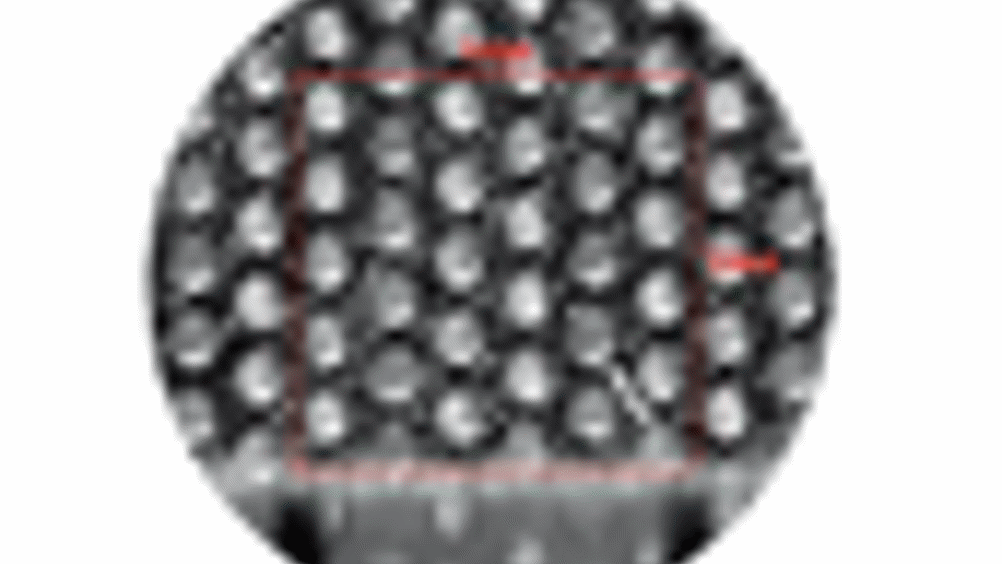

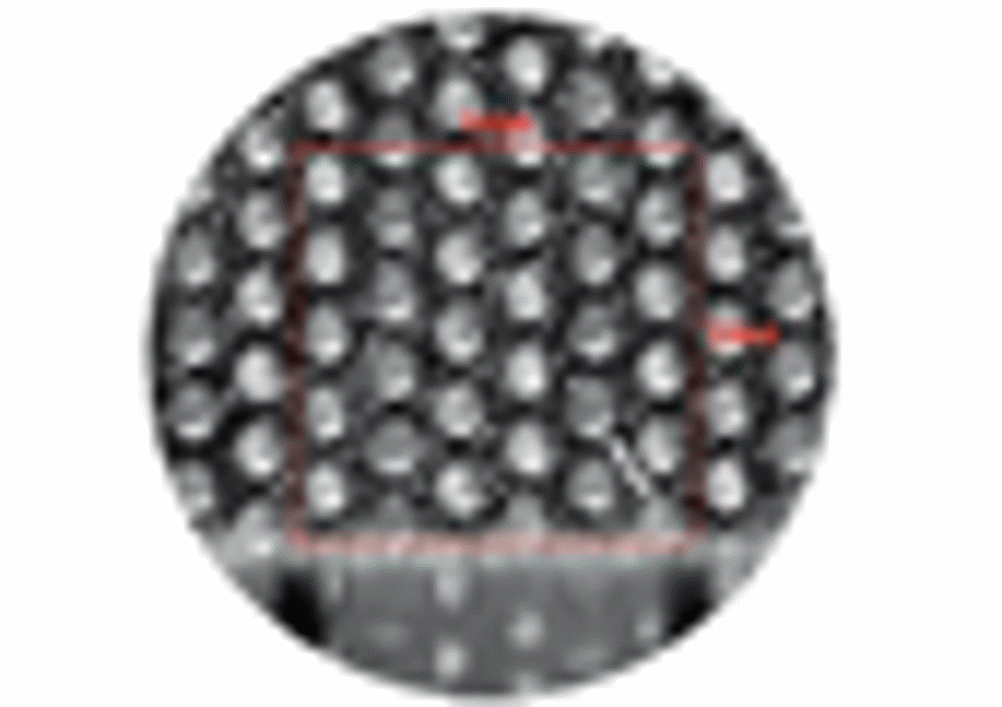

The challenge was to pierce a 78mm diameter, 50 microns thick stainless steel disc with136,187 holes, each hole being 100 microns in diameter(approximately the diameter of a human hair) on a staggered pitch of 200 microns.

A general tolerance for these features of ± 10 microns was achieved as a result of Precision Micro’s highly skilled engineers being encouraged to “push the boundaries” of the process and achieve results previously considered impossible.
