Researchers at Rensselaer Polytechnic Institute have developed a new method of compacting carbon nanotubes into dense bundles.
Theoretical studies show that carbon nanotubes, if packed closely enough together, should be able to outperform copper as an electrical conductor. But because of the way carbon nanotubes are grown – in sparse nanoscale “forests” where carbon molecules compete for growth-inducing catalysts – scientists have been unable to successfully grow tightly packed bundles.
James Jiam-Qiang Lu, associate professor of physics and electrical engineering at Rensselaer, together with his research associate Zhengchun Liu, decided to investigate how to “densify” carbon nanotube bundles after they are already grown. Lu’s team discovered that by immersing vertically grown carbon nanotube bundles into a liquid organic solvent and allowing them to dry, the nanotubes pull close together into a dense bundle. Lu attributes the densification process to capillary coalescence, which is the same physical principle that allows moisture to move up a piece of tissue paper that is dipped into water.
The process boosts the density of these carbon nanotube bundles by five to 25 times. The higher the density, the better they can conduct electricity, Lu said. Several factors, including nanotube height, diameter, and spacing, affect the resulting density, Liu added. How the nanotubes are grown is also an important factor that impacts the resulting shape of the densified bundles.
Images of the experiment are more striking than any “before and after” photos of the latest fad diet.

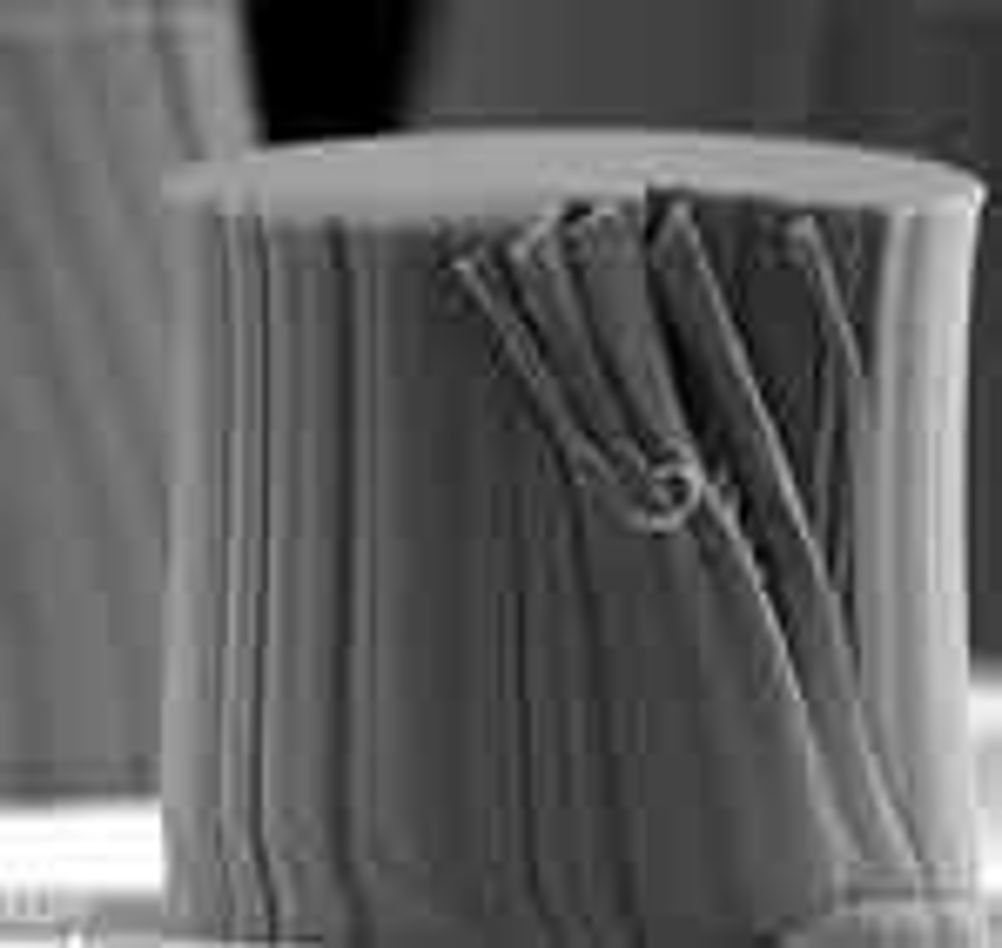

In one instance, Liu started with a carbon nanotube bundle 500 micrometres in diameter, shaped somewhat like a marshmallow, and dipped it into a bath of isopropyl alcohol. As the alcohol dried and evaporated, capillary forces drew the nanotubes closer together. Van Der Waals forces, the same molecular bonds that boost the adhesion of millions of setae on gecko toes and help the lizard defy gravity, ensure the nanotubes retain their tightly packed form.
The resulting bundle shrunk to a diameter of 100 micrometres, with a 25-fold increase in density. Instead of a marshmallow, it looked more like a carpenter’s nail.
‘It’s a significant and critical step toward the realization of carbon nanotube interconnects with better performance than copper,’ Lu said of his research findings. ‘But there’s still a lot of work to do before this technology can be integrated into industrial applications.’
Despite his initial successes, Lu said the density results obtained are not ideal and carbon nanotubes would have to be further compacted before they can outperform copper as a conductor.
A close-up photo, taken using a scanning electron microscope, reveals there are still large empty spaces between densified nanotubes. The research team is exploring various methods to achieve ever-higher density and higher quality of carbon nanotube bundles, he said.
