Single nanowire shrinks spectrometer

2 min read

Scientists have developed a spectrometer made from a single nanowire, an advance that could see spectroscopic devices incorporated into smartphones.

single nanowire

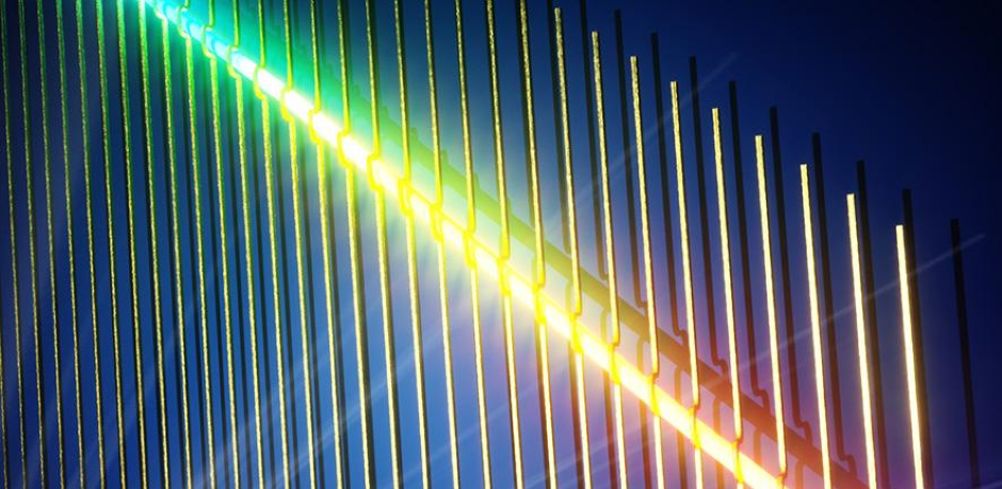

Artist's impression of single nanowire spectrometer (Credit: Ella Maru Studio)

In use, the single nanowire could be used in potential applications such as assessing the freshness of foods, the quality of drugs, or identify counterfeit objects, all from a smartphone camera. Details are reported inĀ Science.

Most spectrometers are based around the spatial separation of light into different spectral components, which limits their size and makes it difficult to shrink to sizes much smaller than a coin. Now, Cambridge University researchers have overcome this challenge to produce a system up to a thousand times smaller than those previously reported.

The Cambridge team, working with colleagues from the UK, China and Finland, used a nanowire whose material composition is varied along its length, enabling it to be responsive to different colours of light across the visible spectrum. Using techniques similar to those used for the manufacture of computer chips, they then created a series of light-responsive sections on this nanowire.

"We engineered a nanowire that allows us to get rid of the dispersive elements, like a prism, producing a far simpler, ultra-miniaturised system than conventional spectrometers can allow," said first author Zongyin Yang from the Cambridge Graphene Centre. "The individual responses we get from the nanowire sections can then be directly fed into a computer algorithm to reconstruct the incident light spectrum."

"When you take a photograph, the information stored in pixels is generally limited to just three components - red, green, and blue," said co-first author Tom Albrow-Owen. "With our device, every pixel contains data points from across the visible spectrum, so we can acquire detailed information far beyond the colours which our eyes can perceive. This can tell us, for instance, about chemical processes occurring in the frame of the image."

"Our approach could allow unprecedented miniaturisation of spectroscopic devices, to an extent that could see them incorporated directly into smartphones, bringing powerful analytical technologies from the lab to the palm of our hands," said Dr Tawfique Hasan, who led the study.

According to Cambridge University, one of the most promising potential uses of the nanowire could be in biology. Since the device is so tiny, it can directly image single cells without the need for a microscope. And unlike other bioimaging techniques, the information obtained by the nanowire spectrometer contains a detailed analysis of the chemical fingerprint of each pixel.

In a statement, the researchers said they hope the platform could lead to an entirely new generation of ultra-compact spectrometers working from the ultraviolet to the infrared range. Such technologies could be used for a wide range of consumer, research and industrial applications, including in lab-on-a-chip systems, biological implants, and smart wearable devices.

The Cambridge team has filed a patent on the technology and hopes to see real-life applications within the next five years.
