Precision voltage reference incorporates two high-current output buffers

1 min read

lt6658

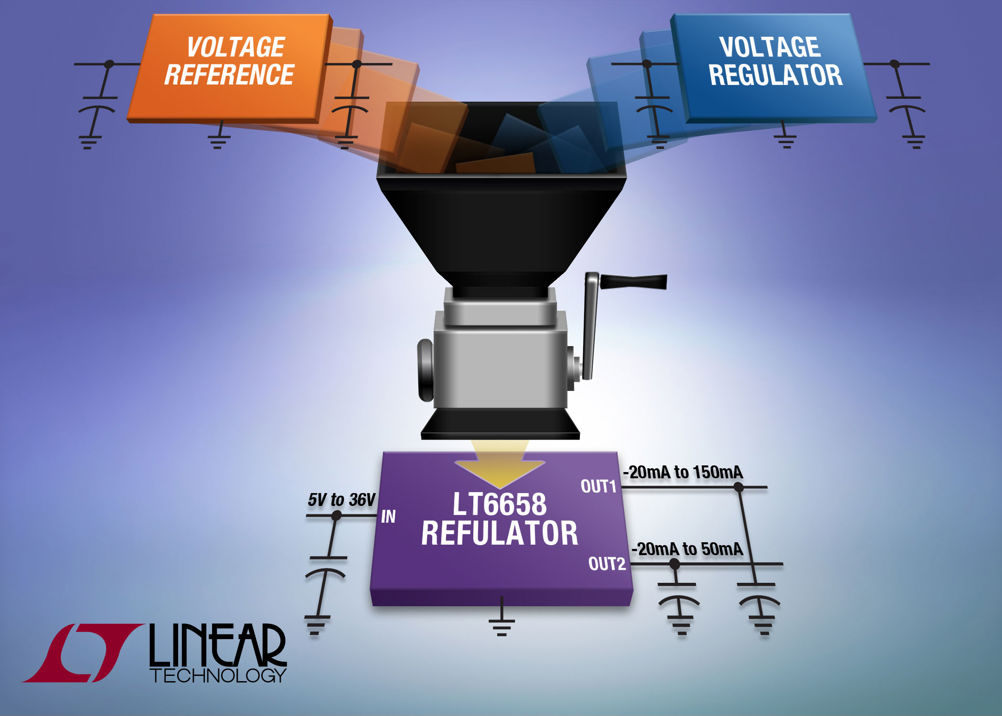

Linear Technology has announced the LT6658, a precision voltage reference that incorporates two high current output buffers. Based on a 2.5V bandgap voltage reference, each output can be separately configured for any voltage between 2.5V and 6V. Both outputs offer 0.05 per cent initial accuracy, 10ppm/°C temperature drift and only 1.5ppm of low frequency noise. The outputs can drive up to 50mA and 150mA, respectively, and sink up to 20mA. Typical load regulation is only 0.1ppm/mA with up to 150mA of load current. In parallel, the buffer outputs can be combined for even higher current capability.

The LT6658 is suitable for driving the reference input for a high resolution ADC or DAC using one output, while simultaneously supplying power to other devices using the second output. Both outputs track each other over temperature and load, allowing them to address applications requiring ratiometric supply rails. The outputs have excellent supply rejection and are stable with up to 50μF over the entire specified operating range. With this output capability, the LT6658 can serve as both reference and regulator combined. Alternatively, the LT6658 can be used to generate a reference, plus a virtual ground, or as two matched, tracking references.

The LT6658 is currently available in a 2.5V version. Options for 1.2V, 1.8V, 3V, 3.3V, and 5V will be available in the first half of 2017. Prices start at $2.35 each in 1,000-piece quantities.
