Babcock develops innovative anti-torpedo system

5 min read

A revolutionary launcher powered by compressed air could boost submarines’ ability to evade torpedo attacks.

Every submarine film has that moment. The moment when a torpedo is launched towards the submarine. There’s the tension. The panicked looks. The pings of the sonar. The focused concentration. And someone, always, ends up shouting ’Dive! Dive! Dive!’ as the submarine takes evasive action.

While evasive manoeuvres are important for avoiding torpedo attack, for the past decade or so, the marine defence sector has been developing anti-submarine countermeasures. These are devices that can be launched from the submarine to trick the torpedo’s tracking system into following them, rather than the target.

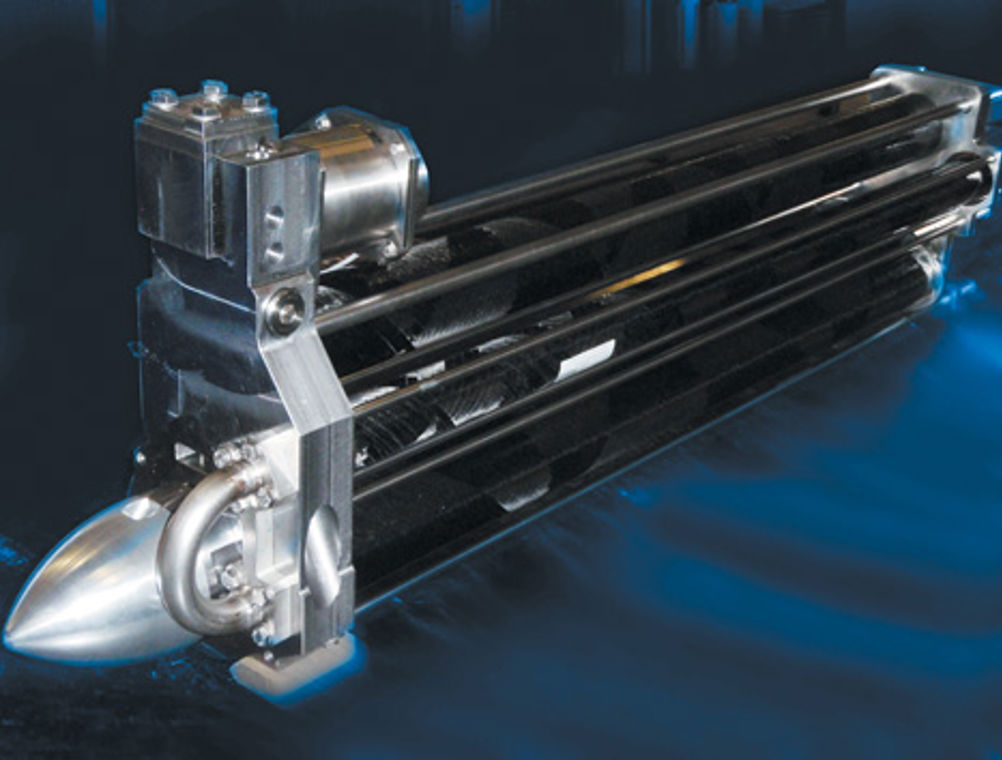

Babcock countermeasure launcher 2
Silver bullet: in basic terms, the launcher is a compressed-air catapult

However, finding ways to launch these devices has proved rather difficult. A team from Babcock has now come up with a new type of launcher, designed with safety as a priority, which can be retrofitted onto the current submarine fleet to provide an extra layer of protection against a form of attack that all submariners hope will never come.

Torpedos hunt acoustically, explained Jeff Owens, future business director for Babcock’s Marine and Technology Division. ’If there’s a torpedo coming towards you, you want to put a countermeasure in the water that “looks” very much like you do from the torpedo’s point of view, so that you can then quietly move away from the torpedo,’ he told The Engineer.

It does this by emitting a sound signature that convinces the torpedo’s guidance system it should follow the countermeasure rather than the submarine. ’The idea is that it looks more like you than you do,’ Owens said. ’The countermeasure will move into clear space; so if you’re deep, you set the countermeasure to go shallow, so the torpedo will explode above you while you skulk out of the way.’

However, a lot of submarines don’t have the capability to launch countermeasures, partly because it takes such a long time to design and build submarines. ’They’ve been introduced over the past decade, but the cycle time is so long that that’s recent, really,’ Owens said.

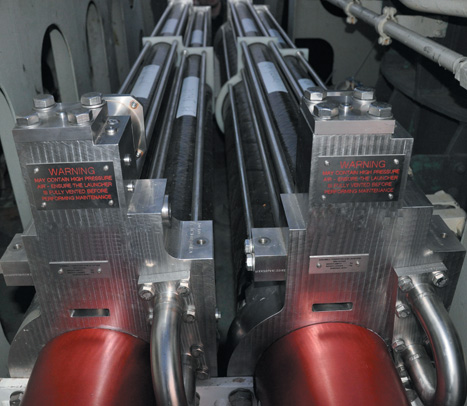

Babcock countermeasure launcher 3
Full artillery:a submarine might need up to 20 launchers loaded and ready to launch

Some submarines have internal launch systems, positioned inside the pressure hull and shooting their armaments through the outer casing, but these systems aren’t suitable for countermeasures.

’One of the issues is that you need a lot of launchers,’ Owens explained. ’When a modern torpedo comes towards you, it instantly starts trying to decide whether it’s following a decoy or a real submarine, so a single countermeasure isn’t sufficient: you need to send out several, either at the same time or in a sequence. And these launchers have to be loaded at all times, because you only have seconds to react when a torpedo is launched. If one comes from a helicopter, you’ll hear nothing, then a splash, and you have to respond in seconds.’

“Launchers have to be loaded at all times, because you only have seconds to react when a torpedo is launched”

Depending on how many countermeasures a commander might want to launch to try to fool a torpedo, a submarine might need to have up to 20 launchers loaded and ready to launch. ’There haven’t really been any suitable systems for this,’ Owens claimed. ’There were some external launchers that sit outside the casing, but they tended to use pyrotechnic charges to launch and we found that customers weren’t at all comfortable with that, from a safety point of view.’

The solution that Babcock has developed is a launcher system that sits under the submarine’s outer casing but outside the pressure hull. This makes it relatively easy to install, because the pressure hull itself does not need to be pierced and then repaired.

The launcher itself is, in basic terms, a compressed-air powered catapult. ’It consists of three composite tubes arranged parallel to each other,’ explained Owens. One of these contains the countermeasure itself; one contains a piston, attached to a cable whose other end is attached to a pusher device behind the countermeasure.

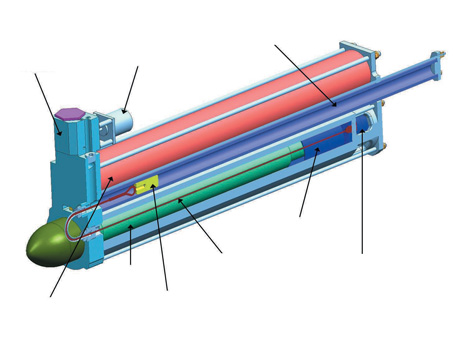

Babcock_scalable flexible launcher concept
High pressure: the solenoid valve releases air from the reservoir into the piston tube

The system is controlled by a solenoid valve. ’When the launcher is operated, the solenoid opens and the air from the reservoir is released into the piston tube. The piston pulls the cable, which in turn pulls on the pusher device in the launcher tube, and the stored countermeasure is hauled out of the tube and into the water. The launch air is kept within the system, so there’s no release of gas into the water; this maintains the submarine’s stealthy acoustic performance and helps it escape.

Part of the design exercise was to ensure that the compressed air stored enough energy to accelerate the countermeasure from stationary to a sufficient exit velocity in a single stroke, Owens said. The system also had to incorporate other features, he added; launching the device had to be a single operation, so sub-systems had to be included to flood the launching tube before the compressed air is released. As the launcher is located outside the pressure hull, the mechanisms in the launch tube also had to cope with whatever water pressure the submarine could encounter. ’We had to find a solution that would keep the store dry when it wasn’t being used,’ Owens explained. ’After all, you really hope that you’ll never have to use one of these. But you don’t want to have to spend time adjusting settings to cope with water pressure, so that’s automatic.’

“The implementation of modelling went further in this project than anything we’ve done before”


Babcock used a model-based design approach for the launcher, using a digital model to simulate the physics of the launch system. This, Owens explained, was a way of reducing risk in the design process: the model allowed the teams to identify and quantify the stresses the system would encounter and have to overcome throughout the various stages of the launch process. The model was used to appraise concept designs, to understand the trade-offs that would be necessary to make the concept into a reality and to estimate the key design parameters.

’The model-based system incorporated mathematical modelling, which we’ve used for a long time,’ Owens said. ’But the implementation of that modelling went much further in this project than anything we’ve done before.’

The device had to be scalable, to take a range of device sizes from 85mm in diameter to a 200mm-diameter, device. ’It had to be lightweight,’ Owens said. ’We had some problems with the dynamics and the structural integrity of the cable, and there were issues with the composite tubing and its behaviour under the water pressures it would encounter at depth.’

For these problems, Babcock’s dedicated testing facilities were invaluable, Owens said. ’We can test at depth on land,’ he said. ’That helped us considerably when we were tackling these issues.’

model system

Babcock uses an adapted method to track the design process as it evolvesModel-based design is a technique that Babcock has adapted from the control and instrumentation sector, in which it simulates the way that processes occurring in the plant depend on the control system’s operation and vice-versa. It is also used for safety-critical process design in the aerospace, defence and automotive sectors.

As the system models the physics of the process, the effects of different subsystems and design tweaks can be seen as the design process evolves. It also allows members of the developing team to see how their input affects the system’s operation and assists with communication between team members something that is notoriously difficult in multidisciplinary engineering teams.
