Verifying truck assembly

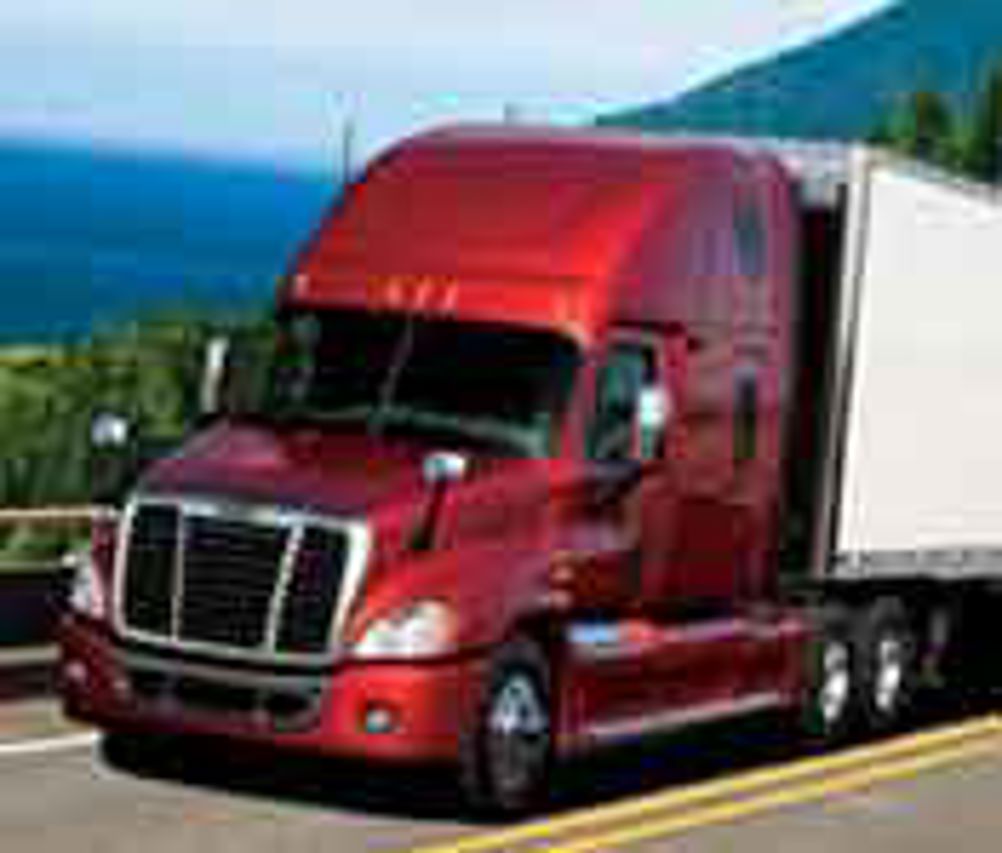

Wineman Technology has selected National Instruments LabVIEW software and PXI-based hardware to build a new test system for US truck maker Freightliner for verifying electrical assemblies on its new line of heavy-duty trucks.

Along with making electrical and physical measurements, the new system also includes a machine vision system for inspecting fuse box assembly that uses cameras built into a custom fixture and coupled with software written in LabVIEW.

In use, the software in the system first communicates with the plant information system to acquire a build order specific to each truck. The software then graphically prompts the operator to place fuses and relays in their proper positions in the fuse box or switch activation module (SAM).

Once finished, the operator prompts the system to take a digital picture of the populated assembly and compares it to the computer-generated image of the build order to produce a pass or fail rating. In the event of a failure, the software locks the part in place and notifies the operator which fuse or relay has been placed incorrectly and graphically identifies the part and its correct placement.
